Friction Stir Welding (FSW) is a solid-state welding process that revolutionized how metals, especially non-ferrous metals like aluminum and magnesium, are joined. Developed by The Welding Institute (TWI) in 1991, FSW joins metals without melting them.
The process uses frictional heat generated by a rotating tool to soften and stir the materials together, forming a strong bond. This innovative method produces high-quality, defect-free welds and is used extensively in industries such as aerospace, automotive, shipbuilding, and rail transportation.
Image by essaii
We will explain how friction stir welding works, the key stages of the process, and how it compares to traditional welding techniques. By understanding the workings of FSW, we can better appreciate its applications and advantages.
What is Friction Stir Welding?
Friction Stir Welding is a solid-state joining process, meaning the material is not melted during welding. It relies on frictional heat generated by a non-consumable rotating tool to soften the material. This allows the material to mix at the joint without transitioning into a liquid state.
The process produces a high-strength weld with minimal defects, making it a preferred method for welding lightweight metals that are difficult to weld using conventional methods.
Key Components of FSW

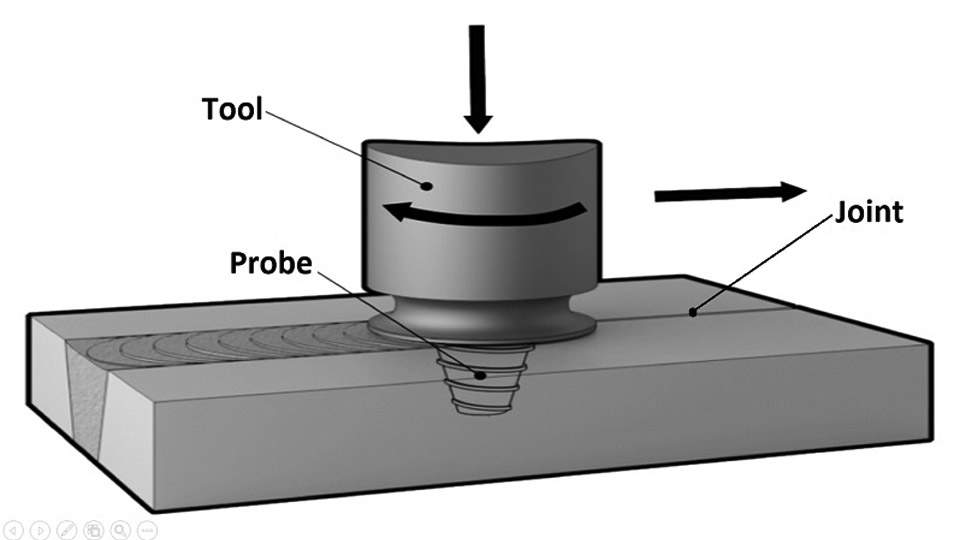

- Rotating Tool: The tool consists of a cylindrical shoulder and a pin (also called a probe) that penetrates the materials to generate heat through friction.
- Workpieces: These are the two materials being welded together, typically clamped securely to avoid movement during the process.
- Welding Machine: A machine controls the rotational speed, pressure, and movement of the tool along the joint.
How Does Friction Stir Welding Work?
The friction stir welding process is characterized by several key stages, each essential to the final outcome of the weld. Lets break down each step to understand how the process works:

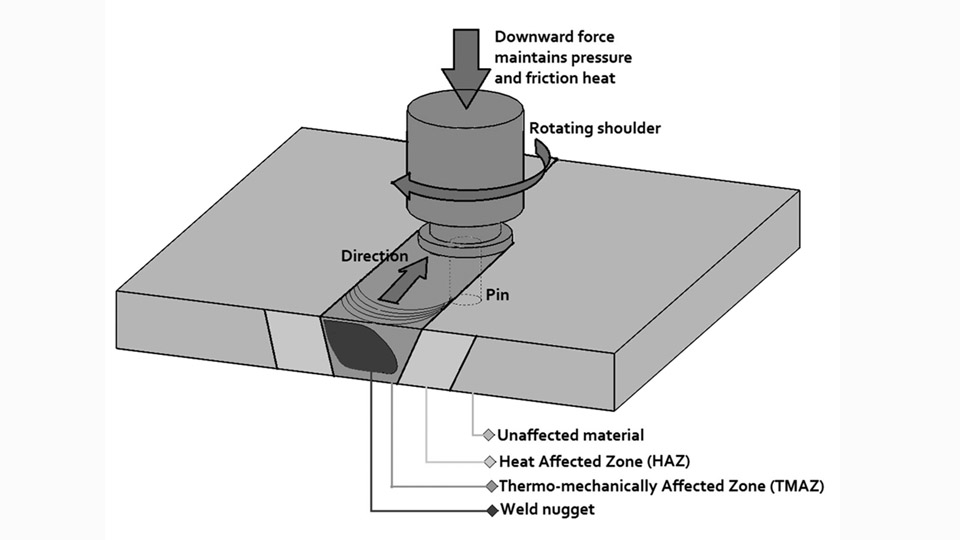

Tool Insertion
The FSW process begins with the insertion of the rotating tool into the material at the seam where the two pieces are to be joined. The pin of the tool penetrates the material, while the shoulder rests on the surface. The tool is rotated at a high speed, and pressure is applied to generate heat through friction between the tool and the material.
The initial insertion is crucial because it determines the success of the heat generation, material softening, and eventual weld.
Frictional Heating
As the rotating tool contacts the material, frictional heat is generated. The temperature stays below the melting point of the material. This localized heat softens the metal around the tools pin, allowing the material to become plasticized without melting. The shoulder of the tool helps to prevent excessive heat loss and also contains the softened material within the weld zone.
The frictional heat ensures that the material remains malleable enough for the tool to stir and mix it, but not so hot that it transitions to a liquid state.
Material Stirring and Mixing
Once the material is sufficiently softened, the rotating pin stirs the plasticized material, effectively mixing it at the joint. This stirring action causes the materials to blend together at the molecular level.
The movement of the pin agitates the material, creating a solid bond between the two workpieces. The shoulder of the tool helps apply downward pressure to contain the softened material and guide it into the weld.
The result is a homogenized weld zone, free from the voids or cracks that can occur in conventional welding methods where melting and re-solidification take place.
Weld Formation
As the tool moves along the joint, it leaves behind a solidified weld as the material cools. The softened metal is stirred and then compacted behind the tool, forming a solid-state bond that retains much of the original mechanical properties of the base material. The weld cools as the tool moves forward, resulting in a high-strength bond between the materials.
Cooling and Solidification
Once the tool passes the entire length of the seam, the weld cools completely and solidifies. Since the material never reached its melting point, there are no issues with solidification cracks, porosity, or other typical welding defects. The solid-state nature of FSW ensures that the joint is strong and reliable.
After cooling, the final weld is characterized by minimal distortion and retains much of the mechanical properties of the original material.
Advantages of Friction Stir Welding
Friction Stir Welding offers several advantages over conventional fusion welding techniques. Here are some of the key benefits:
High-Strength Welds
Since FSW is a solid-state process, the material is never melted, which helps to preserve its original mechanical properties. The result is a stronger weld with fewer defects, such as porosity or cracking. FSW produces joints with strength comparable to or exceeding that of the base materials.
Minimal Thermal Distortion
The heat generated in FSW is localized and stays below the melting point, reducing thermal stress and distortion. This is particularly important for applications requiring precision, such as aerospace and automotive components, where dimensional accuracy is critical.
No Filler Material or Shielding Gas Needed
Unlike traditional welding methods that require filler materials or shielding gases, FSW only relies on the tool and the workpieces. This makes the process cleaner, more cost-effective, and environmentally friendly, as it reduces the need for additional materials and eliminates harmful gas emissions.
Fewer Welding Defects
FSW avoids common defects found in conventional welding methods, such as hot cracking, porosity, and incomplete fusion. The solid-state nature of the process ensures that the weld is free from gas bubbles or other impurities that can weaken the joint.
Dissimilar Material Welding
FSW is highly effective in joining dissimilar materials that are difficult to weld using traditional methods. For instance, FSW can join aluminum and copper or aluminum and steel, which expands the possibilities for lightweight, hybrid materials in industries like electronics and transportation.
Disadvantages of Friction Stir Welding
While FSW has many benefits, there are some limitations to the process. Here are a few disadvantages to consider:
High Initial Equipment Costs
The specialized equipment required for FSW, including CNC-controlled machines, is more expensive than traditional welding equipment. The cost of setup can be a significant barrier, especially for small-scale operations or industries with limited budgets.
Limited Material Compatibility
FSW is primarily suited for softer metals with good plasticity, such as aluminum, magnesium, and copper. It is less effective for high-strength materials like steel and titanium, which require higher temperatures for successful welding.
Surface Appearance
The tool used in FSW leaves visible marks or indentations on the surface of the material. While these marks do not affect the strength of the weld, they may require additional finishing in applications where aesthetics are important.
Tool Wear
The rotating tool in FSW experiences wear over time, especially when welding harder materials or welding over long distances. Tool wear can affect the quality of the weld and may require frequent tool replacement, which can add to the operational costs.
Applications of Friction Stir Welding
Friction Stir Welding is used in various industries that require strong, lightweight, and defect-free joints. Here are some key applications of FSW:
Aerospace Industry
FSW is widely used in the aerospace industry to join aluminum components in aircraft structures. It is used to weld fuselage panels, wings, and fuel tanks, where strength and weight reduction are critical. The process ensures that the joints are strong, reliable, and free from defects, which is essential for safety in flight.
Automotive Industry
In the automotive industry, FSW is used to join lightweight materials, such as aluminum, in car doors, hoods, and chassis components. The strong, lightweight welds created by FSW help improve fuel efficiency and reduce the overall weight of vehicles, which is especially important for electric and hybrid cars.
Shipbuilding Industry
In shipbuilding, FSW is used to weld aluminum hulls, decks, and superstructures. The process produces long, continuous welds with minimal distortion, making it ideal for large, lightweight, and corrosion-resistant vessels.
Rail Transportation
FSW is also used in the rail transportation industry to weld aluminum components in trains. High-speed trains, in particular, benefit from the lightweight and high-strength joints produced by FSW, which improve fuel efficiency and structural integrity.
Electrical Components
Friction Stir Welding is used in the production of electrical components, such as battery enclosures, heat sinks, and bus bars. The process is especially useful for joining dissimilar materials, such as aluminum and copper, used in electrical and electronic devices.
Comparison Between Friction Stir Welding and Conventional Welding
To better understand the advantages of FSW, its important to compare it with traditional welding techniques, such as MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding.
| Aspect | Friction Stir Welding (FSW) | MIG Welding | TIG Welding |
|---|---|---|---|
| Heat Input | Low heat, below melting point | High heat, material melts | High heat, material melts |
| Material State | Solid-state (no melting) | Fusion (melting and re-solidification) | Fusion (melting and re-solidification) |
| Weld Quality | Strong, defect-free joints | May have defects like porosity or cracking | High-quality welds but slower process |
| Material Compatibility | Best for aluminum, magnesium, copper | Wide range of metals, including steel | Wide range of metals, including steel |
| Filler Material | No filler material required | Requires filler wire | Requires filler rod |
| Energy Efficiency | More energy efficient | Higher energy consumption | Higher energy consumption |
| Thermal Distortion | Minimal thermal distortion | High thermal distortion | High thermal distortion |
| Speed of Welding | Fast process for continuous welds | Moderate to fast, depending on material | Slower due to manual control |
| Cost | Higher initial equipment cost, lower operational costs | Lower initial equipment cost | Lower initial equipment cost |
| **Operator |
Conclusion
Friction Stir Welding (FSW) is an advanced welding technique that offers numerous advantages over traditional fusion welding processes. Its ability to produce strong, defect-free welds with minimal thermal distortion makes it an ideal choice for industries that rely on lightweight, high-strength materials, such as aerospace, automotive, and shipbuilding.
Despite its high initial equipment costs and limitations in terms of material compatibility, FSW continues to gain popularity due to its efficiency, energy savings, and ability to join dissimilar materials.
Understanding how friction stir welding works, along with its benefits and limitations, is key to determining whether it is the right welding solution for your specific application.
